We currently stock Marin, Ridgeback and Raleigh and have the following new bikes in stock
Bikes in stock
The Motus Grand Tour is our most specced-out e-bike in the Motus range, giving you the freedom to go further and faster than you ever thought possible. With power-assisted pedals boosting your pedal power by up to 270%, cross-country cycling isn’t just possible – it’s easy. And with a super-silent Active Line Plus motor, you can revel in the ride without the distracting hum of an engine. All this tech is powered by a 500WH battery, enough to get you from Nottingham to London – or however far your snacks will take you.
When you’re ready to turn your ride into a proper workout, you can tone down your pedal assistance on the Intuvia Display – no stopping necessary. This handlebar-handy unit also gives you eyes on your speed, battery life and remaining range, making tracking your journey home an absolute doddle.
Along with all the technical stuff, this fully-equipped electric bike comes kitted out with full mudguards, a built-in wheel lock, a kickstand, reflective wheels and integrated lights at the front and rear, promising you a safe, exceptionally comfy ride – whatever the season. And with powerful hydraulic disc brakes and an easy-to-use hub gear system, you’ll always stay in control.
So, what’ll it be? The beach? The park? The next town over? Whatever the destination, these wheels will get you there – no sweat necessary.
-
- The Ridgeback Electron is a classic city E-bike with motorised pedal assistance and the practicality of an open frame design, making it easy to take a seat in complete comfort.
-
- Once you're on board, the Electron offers 200-watts of pedalling assistance, making hills disappear and continuing to power you along flatter sections, all the way up to 25km/h.
-
- The motor is located centrally on the bike, making for a balanced ride. With a range of up to 45-kilometres the Electron is perfect for shorter, local journeys, commutes and leisure rides, before re-charging the battery overnight for the next trip.
-
- The Electron is also fully equipped with lights, a kickstand and rear wheel lock, as well as mudguards to minimise spray on wet roads and a chain case to protect legs and trousers from oily marks.
-
- Powerful hydraulic disc brakes give assured stopping in all conditions and Shimano Nexus hub gears give seven speeds for easy progress even in hillier terrain.
- For the ultimate in comfort the Electron features wide tyres, an elastomer-sprung high-fill saddle and an adjustable stem enabling the rider to choose their preferred handlebar height.
Our most affordable E-bike, the Electron Front Hub Drive gives a powerful pedal assist to help you ride further, faster.
The motor is located at the centre of the front wheel and gives assistance up to speeds of 25km/h, making light work of any climbs you may encounter.
The open frame design makes it easy to step through the bike, get onto the saddle and start riding.
The Electron has a range of up to 55-kilometres, making it perfect for local rides and an overnight re-charge will have you ready for your next trip. Comfort is catered for with wide tyres, an elastomer-sprung high-fill saddle and an adjustable stem enabling the rider to choose their preferred handlebar height.
The Electron is also fully equipped with lights, a kickstand and rear wheel lock, as well as mudguards to minimise spray on wet roads and a chain case to protect legs and trousers from oily marks.
- Weight - 24.7kg
- Battery IntegrationExternal
- Battery TypeSportdrive 313wh
- Brake TypeRim
- Cable RoutingMix
- Chainset TypeSingle
- ChargerSportdrive 2AH
- DisciplineE-Bike
- Fork MaterialSteel
- Frame MaterialAlloy
- Frame ShapeOpen Frame
- Grip TapeRidgeback
- MudguardFitted
- SaddleRidgeback Metro
- Wheel Size700c
- GenderUnisex
- Product TypeBikes
ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING
The Gestalt X is the mountain biker’s dropbar bike with reliable and simple 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
SPECIFICATIONS
FRAME
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIMS
Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific
HUB, REAR
Forged Aluminum Alloy, 32H
HUB, FRONT
Forged Aluminum Alloy, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
Schwalbe G-One Performance, 700Cx40mm, Folding Bead
DERAILLEUR, REAR
MicroSHIFT Advent X 10-Speed Wide-Range
SHIFT LEVER
MicroSHIFT Advent X 10-Speed
CRANKSET
Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
BOTTOM BRACKET
External Sealed Cartridge Bearings
CHAIN
KMC X10
CASSETTE
SunRace 10-Speed, 11-51T
BRAKE, FRONT
Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
BRAKE, REAR
Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
BRAKE LEVERS
MicroSHIFT Advent X
HANDLEBAR
Marin Butted Alloy, Compact 16º Flared Drop
STEM
Marin 3D Forged Alloy
GRIPS
Marin Shock Absorbing Perforated Tape
HEADSET
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST
Marin Alloy, 27.2mm
SADDLE
Marin Beyond Road Concept
EXTRAS
Bolt-On Thru-Axles F and R
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
Key upgrades over the DSX 1:
- Shimano Deore 6100 1x12 drivetrain
- Shimano hydraulic disc brakes
SPECIFICATIONS
FRAME
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIMS
Marin Aluminium Double Wall, 21mm Inner, Disc Specific
HUB, REAR
Shimano Forged Aluminium, 142x12mm, Microspline, Centerlock, 32H
HUB, FRONT
Forged Aluminium, 100x12mm, Centerlock, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
WTB Riddler, 700Cx45mm
DERAILLEUR, REAR
Shimano Deore 12-Speed
DERAILLEUR, FRONT
-
SHIFT LEVER
Shimano Deore 12-Speed
CRANKSET
Forged Aluminum, 42T Steel Narrow Wide Chainring
BOTTOM BRACKET
Sealed Outboard Bearing
CHAIN
KMC X12
CASSETTE
Shimano Deore 12-Speed, 10-51T
BRAKE, FRONT
Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKE, REAR
Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Shimano Hydraulic
HANDLEBAR
Marin MiniRiser
STEM
Marin 3D Forged Alloy
GRIPS
Marin MTB
HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST
Marin Alloy
SADDLE
Marin DSX
PEDALS
Commute Platform
EXTRAS
Bolt-On Thru-Axles F and R
The Larkspur are at home in the town as well as the concrete jungle, built for jumping curbs and cutting through a park on the way to the grocery store or class. This is the classic bike shop employee commuter bike built for the everyday rider.
Key Features:
- Steel Frame The Larkspur models also feature the butted Series 2 frame with a mixte step thru design for easy mounting and dismounting, even with panniers.
- Disc Brakes Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
Specification
Frame: | Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts |
Fork: | CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets |
Headset: | FSA Orbit CE No.8B |
Stem: | Marin Alloy, 31.8mm Clamp |
Bars: | Marin Alloy Sweeper |
Front Brake: | Tektro HD-M275 Hydraulic, 180mm Rotor |
Rear Brake: | Tektro HD-M275 Hydraulic, 180mm Rotor |
Front Mech: | N/A |
Rear Mech: | MicroSHIFT Advent X 10-Speed Wide Range |
Shifters: | MicroSHIFT Advent X 10-Speed |
Speed: | 10 |
Rims: | Marin Aluminum Double Wall, 27mm Internal, Disc Specific |
Front Hub: | Forged Aluminum Alloy, 32H |
Rear Hub: | Forged Aluminum Alloy, 32H |
Spokes: | 14g Black Stainless Steel |
Front Tyre: | Vee Tire, GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready |
Rear Tyre: | Vee Tire, GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready |
Seat Post: | Marin Alloy, 27.2mm |
Saddle: | Marin Adventure Plush |
Chainset: | Forged Alloy Crank, Steel Narrow Wide 38T Chainring |
Bottom Bracket: | Sealed Cartridge Bearings, Square Taper |
Chain: | KMC X10 |
Cassette: | SunRace 10-Speed, 11-51T |
COMMUTING CRUISING MULTI-SURFACE EXPLORING
The power to move through the urban landscape cleanly and efficiently is now as simple as pedaling. The Sausalito family of bikes helps you keep up the pace with a fun and lively assist to flatten hills and get you from A to B with a fresh smile, as well as clean clothes and a smart look.
SPECIFICATIONS
- FRAME: Series 3 Butted and Formed 6061 Aluminium, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
- FRONT SUSPENSION: Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
- RIMS: Marin Aluminium Double Wall, Disc Specific
- HUB, REAR: Forged Alloy, Disc Specific, 32H
- HUB, FRONT: Forged Alloy, Disc Specific, 32H
- SPOKE, NIPPLES: 14g Black Stainless Steel
- TIRES: WTB Horizon, 650Bx47, Wire Bead
- DERAILLEUR, REAR: Shimano Deore 10-Speed
- DERAILLEUR, FRONT: N/A
- SHIFT LEVER: Shimano Deore 10-Speed
- CRANKSET: Shimano, Aluminium w/ 44T Steel Chairing
- MOTOR: Shimano STEPS E5000 System
- BOTTOM BRACKET: N/A
- CHAIN: KMC X10E
- CASSETTE: Shimano Deore 10-Speed 11-46T
- BRAKE, FRONT: Tektro HD-M275 Hydraulic, 180mm Rotor
- BRAKE, REAR: Tektro HD-M275 Hydraulic, 180mm Rotor
- BRAKE LEVERS: Tektro Hydraulic
- HANDLEBAR: Marin MiniRiser Alloy
- STEM: Marin Alloy
- GRIPS: Marin Adventure
- HEADSET: FSA No. 57E
- SEATPOST: Marin Alloy, 27.2mm
- SADDLE: Marin City Plush
- PEDALS: Nylon Platform
- KICKSTAND: Rear Mount Alloy
- BATTERY: Shimano BT6010, 418Wh
ADVENTURE ROAD AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT
The Nicasio is for the rider looking for something different and modern, yet with traditional steel construction. Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm-40mm or 650B x 47mm tires to let riders handle any surface.
Key upgrades over the Nicasio:
- 650x47mm wheelset w/WTB Horizon tires
- MicroSHIFT wide range 1x9 drivetrain
SPECIFICATIONS
FRAME
Series 1 Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
FORK
CrMo, Fender and Rack Eyelets, IS Disc Mount
RIMS
Marin Aluminum Double Wall, 25mm Inner, Disc Specific
HUB, REAR
Forged Aluminum Alloy, 32H
HUB, FRONT
Forged Aluminum Alloy, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
WTB Horizon, 650Bx47mm
DERAILLEUR, REAR
MicroSHIFT Advent, 1x9 w/ Clutch Mech
SHIFT LEVER
MicroSHIFT Advent, 1x9 Specific
CRANKSET
FSA Vero Pro 1x, Narrow Wide Rings, 42T
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
CHAIN
KMC X9
CASSETTE
SunRace 9-Speed, 11-46T
BRAKE, FRONT
Tektro Road Mechanical Disc, 160mm Rotor
BRAKE, REAR
Tektro Road Mechanical Disc, 160mm Rotor
BRAKE LEVERS
MicroSHIFT Advent
HANDLEBAR
Marin Butted Alloy, Compact 12º Flared Drop
STEM
Marin 3D Forged Alloy
GRIPS
Marin Comfort Tape
HEADSET
FSA No.8D, Sealed Cartridge Bearings
SEATPOST
Marin Alloy, 27.2mm
SADDLE
Marin Beyond Road Concept
PEDALS
Commute Platform
The Kentfield is a retro-modern, stylish, yet affordable bike that can do it all, the new Kentfield is ready to take you to school, the bike path, or through the back alleys to B-line to a coffee date.
SPECIFICATIONS
FRAME
Series 1 6061 Aluminum, 700C Wheels, Step Through Design, Kickstand Mount, Fender and Rack Mounts
FORK
Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
RIMS
Marin Aluminum Double Wall, Disc Specific
HUB, REAR
Forged Aluminum Alloy, 32H
HUB, FRONT
Forged Aluminum Alloy, 32H
SPOKE, NIPPLES
14g Stainless Steel
TIRES
Vee Tire GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready
DERAILLEUR, REAR
MicroSHIFT Advent X 10-Speed Wide Range
-
SHIFT LEVER
MicroSHIFT Advent X 10-Speed
CRANKSET
Forged Alloy Crank, Steel Narrow Wide 38T Chainring
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
CHAIN
KMC X10
CASSETTE
SunRace 10-Speed, 11-51T
BRAKE, FRONT
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
BRAKE, REAR
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
BRAKE LEVERS
Aluminum Lever
HANDLEBAR
Marin Alloy, 30mm Rise, 12˚ Backsweep
STEM
Marin Aluminum, 31.8mm Clamp
GRIPS
Marin Adventure
HEADSET
FSA 888 Threadless
SEATPOST
Marin Alloy, 27.2mm
SADDLE
Marin Adventure Plush
PEDALS
Commute Platform
There?s a lot to love about the great outdoors, from sunny picnics to late-night swims, this dreamy vintage bike lets you rediscover the natural world ? from the best seat in the house. Fill the basket with a baguette and some brie, and start exploring
Inspired by over 130 years of classic British design, the Willow blends modern components with a timeless retro look you?ll fall head over heels for. In a throwback to Raleigh?s roots, the lightweight frame features graphics inspired by our humble beginnings in Nottingham, coated in a protective lacquer to keep your bike in tip-top condition. And with a roomy wicker-style basket, you?ve got oodles of room for your essentials ? whether that?s beer, grub or a tiny pooch. Aside from its classic vintage features, the Willow has all the fixings of a cracking bike. The classic steel frame has a relaxed geometry for an upright, easy ride, with additions like a Selle Royal saddle and soft detailed grips keeping you comfy on those longer journeys. The 7-speed derailleur gears make getting up slopes a doddle, while colour-coordinated mudguards keep your clothes dry on rainy days. Finished with a handy kickstand and a traditional ding-dong bell, this classic town bike has everything you need to get out and about in style. Looking to match your hallway decor? From dusky pink to classic bronze, the Willow comes in an array of minimal, nature-inspired colour schemes. For a truly Instagrammable aesthetic, add some fresh flowers to the basket. BEAUTIFUL.
Specifications
- Frame - Raleigh Classic Aluminium Twin Tube Low Step Women's Frame
- Fork - Raleigh Classic Steel Rigid
- Drivetrain - Shimano Tourney 7-Speed
- Brakes - Caliper Brake
Full Specification
- Frame - Raleigh Classic Aluminium Twin Tube Low Step Women's Frame, Internal Rear Brake and Derailleur Cables, Steering Limiter
- Fork - Raleigh Classic Steel Rigid 22.2mm, Fork Crown with Raleigh Logo
- Shock -
- Number of Gears - 7-speed
- Shifters - Shimano Tourney SL-RS36-7R, 7 speed Revoshift
- Chainset - 170mm Aluminium Crank
- Chainrings - Raleigh Classic Steel Chainwheel, 42T
- Cassette - Shimano Tourney AMFTZ5007428, 7 speed, 14-28
- Chain - 6/7 speed
- Front Derailleur -
- Rear Derailleur - Shimano Tourney RD-TY300, 6/7 Speed, Direct Attachment
- Bottom Bracket -
- Pedals - Aluminium trekking, 9/16", black/silver
- Rims - Double wall 36h, Machined Side Wall, Colour coordinated
- Front Hub - Aluminium 36h, Nutted, Silver
- Rear Hub - Aluminium 36h, Nutted, Silver
- Front Tyre - CST C1635, 700x45c, Anti Puncture Layer, Reflective Strip, Full Cream
- Rear Tyre - CST C1635, 700x45c, Anti Puncture Layer, Reflective Strip, Full Cream
- Front Brake - Caliper Brake
- Rear Brake - Caliper Brake
- Brake Levers - Aluminium Lever, Resin Bracket
- Handlebars - Aluminium, City, 580mm Wide, High Polished Silver
- Grips - n/a
- Headset - n/a
- Stem - Steel, Trekking, 30 Degree Rise, 22.2mm, High Polished Silver
- Saddle - Selle Royal Sky Kennebeck 8084, Silver Rail and Spring, Brown
- Seatpost - Aluminium, Micro Adjust, 27.2 x 300mm, High Polished Silver
- Post Clamp -
- Weight - 17kg
COMMUTING
CITY TRANSIT
The Presidio is our dedicated commuting range, designed with low maintenance and adaptability in mind. Disc brakes, puncture resistant tires and high performance belt drives or corrosion-resistant chains are built tough for city streets, while the lightweight aluminum frames feature all of the attachment points and braze-ons that commuters demand.
Key upgrades over the Presidio 1:
- Series 2 Commute butted and formed aluminum frame
- Lightweight aluminum fork
- Shimano Nexus 7D internally geared hub
- Shimano disc brakes
SPECIFICATIONS
FRAME
Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts
FORK
6061 Aluminum, Disc Brake, Straight-Blade
RIMS
Marin Aluminum Double Wall, Disc Specific
HUB, REAR
Shimano Nexus 7D 7-Speed Internally Geared Hub, Centerlock Disc, 32H
HUB, FRONT
Forged Aluminum Alloy, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
Vee Tire, Baldy, 700Cx32mm, Puncture Protection, Reflective Sidewall, Wire Bead
DERAILLEUR, REAR
-
DERAILLEUR, FRONT
-
SHIFT LEVER
Shimano Nexus Twist Shifter 7-Speed
CRANKSET
Forged Alloy, 42T, 140mm, Ring Guard
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
CHAIN
KMC Z410RB w/ Anti-Corrosion Coating
CASSETTE
Shimano Nexus Cog, 19T
BRAKE, FRONT
Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
BRAKE, REAR
Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Shimano Hydraulic
HANDLEBAR
Marin Alloy Flat
STEM
Marin Alloy
GRIPS
Dual Density Ergonomic
HEADSET
FSA No.8B
SEATPOST
Marin Alloy, 27.2mm
SADDLE
Marin Fitness Plush
PEDALS
Commute Platform
EVERYDAY ADVENTURES
URBAN WARRIOR
OUT OF THE BOX RIDING

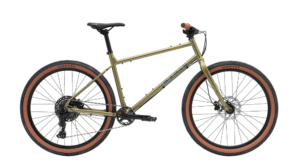

The Muirwoods and Larkspur are at home in the concrete jungle, built for jumping curbs and cutting through a park on the way to the grocery store or class. This is the classic bike shop employee commuter bike built for the everyday rider.
SPECIFICATIONS
- FRAME: Series 2 Double Butted CrMo w/Marin Slider Dropouts, 650B Wheels, Flat Mount Disc Brake, Fender and Rack Mounts, Rear Kickstand Mount
- FORK: CrMo, Fender and Rack Eyelets, IS Disc Mount
- RIMS: Marin Aluminium Double Wall, 27mm Inner, Disc Specific
- HUB, REARS: himano Nexus 8-Speed Internally Geared Hub, Centerlock Disc, 32H
- HUB, FRONT: Forged Aluminium Alloy, Centerlock Disc, 32H
- SPOKE, NIPPLES: 14g Black Stainless Steel
- TIRES: WTB Horizon, 650Bx47mm, Wire Bead
- DERAILLEUR, REAR: N/A
- DERAILLEUR, FRONT: N/A
- SHIFT LEVER: MicroSHIFT 8-Speed Thumb Shifter
- CRANKSET: Forged Aluminium, Alloy Ring Guard, 42T
- BOTTOM BRACKET: Sealed Cartridge Bearings, Square Taper
- CHAIN: KMC Z410RB w/ Anti-Corrosion Coating
- CASSETTE: Shimano Nexus Cog, 19T
- BRAKE, FRONT: Shimano BR-M201 Hydraulic Disc, 160mm Rotor
- BRAKE, REAR: Shimano BR-M201 Hydraulic Disc, 160mm Rotor
- BRAKE LEVERS: Shimano BL-M201 Hydraulic
- HANDLEBAR: Marin Alloy Swept-Back City Bar, 31.8mm Clamp
- STEM: Marin 3D Forged Alloy
- GRIPS: Marin Locking
- HEADSET: FSA No.8D, Sealed Cartridge Bearings
- SEATPOST: Marin Alloy, 27.2mm
- SADDLE: Marin Beyond Road Concept
- PEDALS: Commute Platform
- FENDER: Custom Extruded Aluminium Alloy w/ Stainless Hardware
HARDTAIL TRAIL RIDING
AGGRESSIVE SINGLETRACK
The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.
FRAME
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
FRONT SUSPENSION
SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
RIMS
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
HUB, REAR
Forged Alloy, 32H
HUB, FRONT
Forged Alloy, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
WTB Trail Boss Comp, 27.5/29x2.25, Wire Bead
DERAILLEUR, REAR
Shimano Altus, 9-Speed, Shadow Design
DERAILLEUR, FRONT
Shimano Altus Double
SHIFT LEVER
Shimano Altus 2x9
CRANKSET
Alloy Crank, Steel Chainrings, 36/22T
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
CHAIN
KMC X9
CASSETTE
SunRace 9-Speed, 11-36T
BRAKE, FRONT
Tektro HD-M275 Hydraulic Disc, 160mm Rotor
BRAKE, REAR
Tektro HD-M275 Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Tektro M275 Hydraulic Disc
HANDLEBAR
Marin 31.8 Riser, 12mm Rise, 780mm Width
STEM
Marin Alloy, 31.8mm Clamp, 45mm
GRIPS
Marin MTB, Closed End
HEADSET
FSA No.10-P
SEATPOST
Marin Alloy, 30.9
SADDLE
Marin MTB
PEDALS
Nylon Platform
HARDTAIL TRAIL RIDING
AGGRESSIVE SINGLETRACK
The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.
FRAME
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
FRONT SUSPENSION
SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
RIMS
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
HUB, REAR
Forged Alloy, 32H
HUB, FRONT
Forged Alloy, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
WTB Trail Boss Comp, 27.5/29x2.25, Wire Bead
DERAILLEUR, REAR
Shimano Altus, 9-Speed, Shadow Design
DERAILLEUR, FRONT
Shimano Altus Double
SHIFT LEVER
Shimano Altus 2x9
CRANKSET
Alloy Crank, Steel Chainrings, 36/22T
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
CHAIN
KMC X9
CASSETTE
SunRace 9-Speed, 11-36T
BRAKE, FRONT
Tektro HD-M275 Hydraulic Disc, 160mm Rotor
BRAKE, REAR
Tektro HD-M275 Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Tektro M275 Hydraulic Disc
HANDLEBAR
Marin 31.8 Riser, 12mm Rise, 780mm Width
STEM
Marin Alloy, 31.8mm Clamp, 45mm
GRIPS
Marin MTB, Closed End
HEADSET
FSA No.10-P
SEATPOST
Marin Alloy, 30.9
SADDLE
Marin MTB
PEDALS
Nylon Platform
